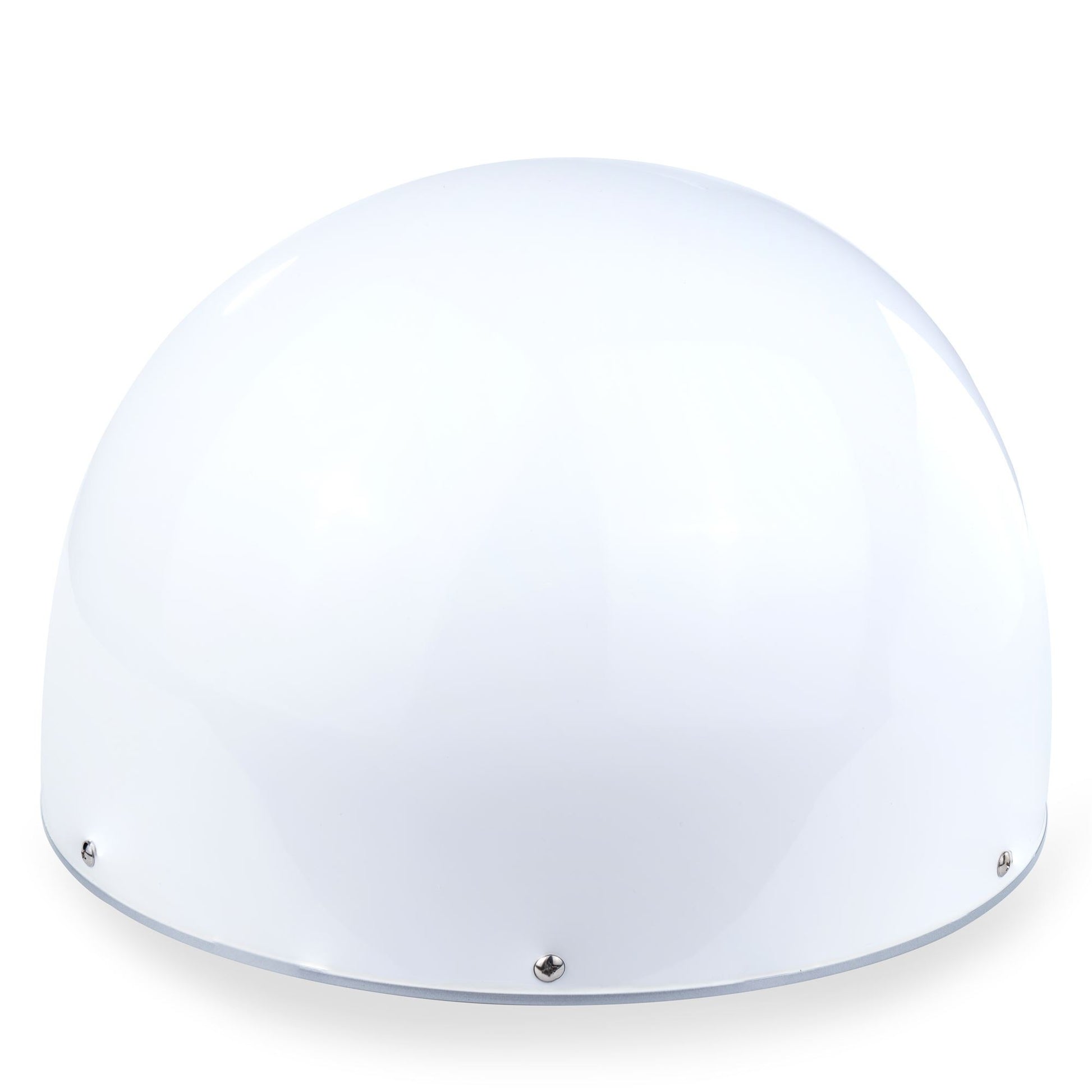

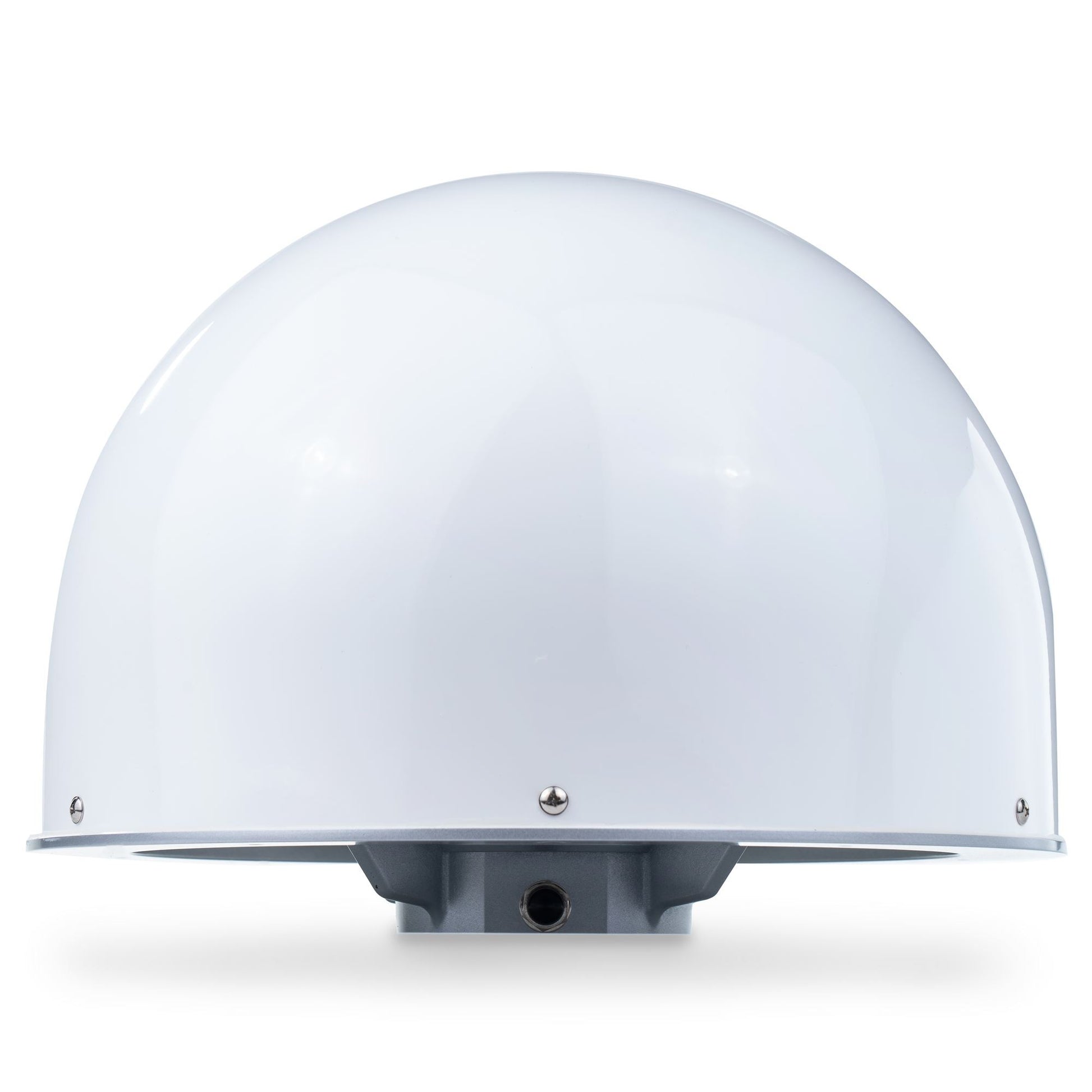

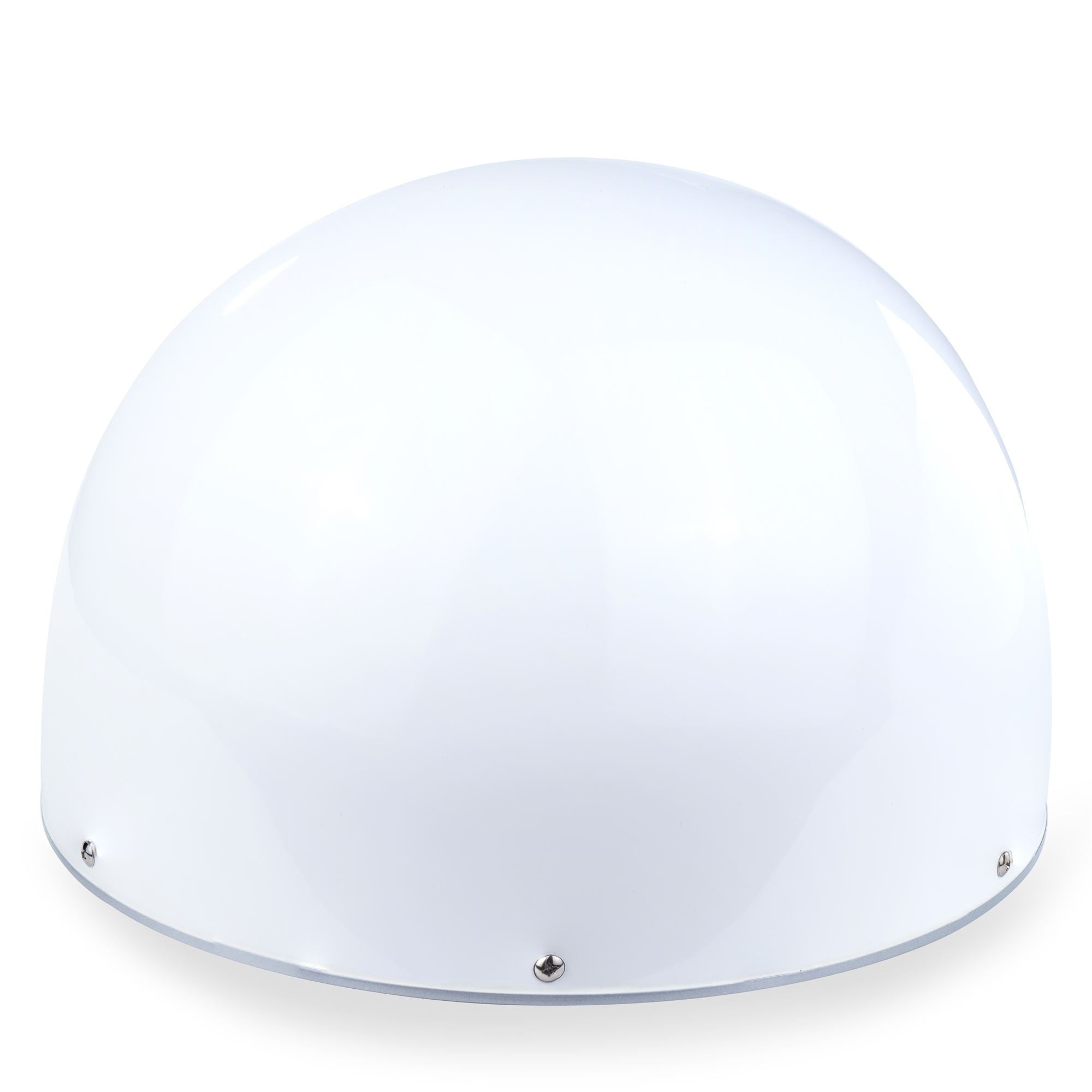

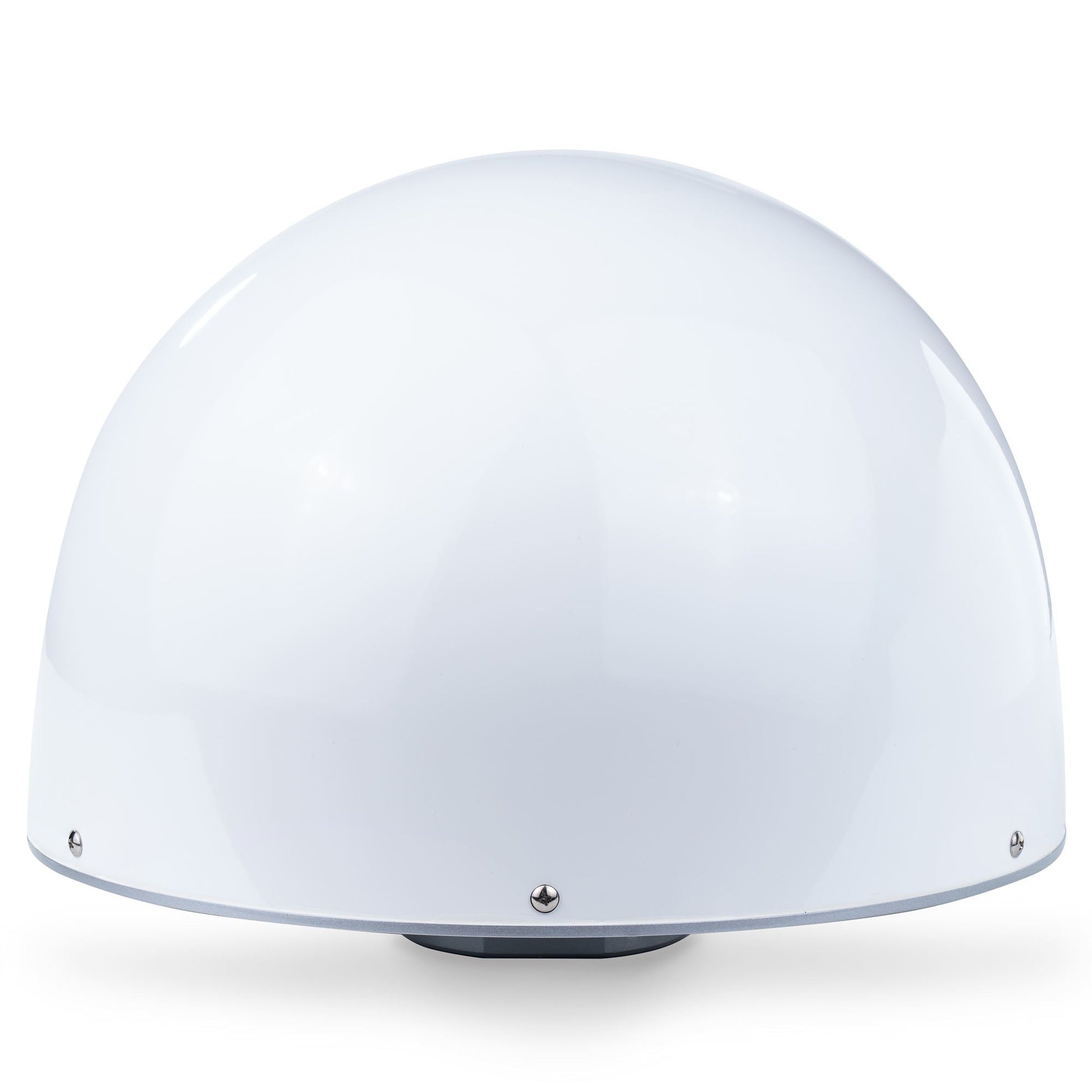

AllBand+ Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC connector
AllBand+ Choke Ring 3D High Performance Multiband RTK GNSS Antenna with TNC connector
Regular price
€2.899,00
Sale price
€2.899,00
Regular price
Tax excluded
AllBand+ Choke Ring full band Antenna description:
This is four star full frequency reference station antenna with high gain and high precision. Multi systems compatibility and high reliability. Antenna can be used as a geodetic surveying, mapping and for precision agriculture.
Please log in to download the datasheet.
Limited stock (<10 pcs)
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1/E5a/E5b/E6
- BDS B1I/B2I/B3I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5/L6
- IRNSS I5
- L-band
RF Specifications
- LNA Gain: 50 dB
- Noise Figure: 1.5 dB typical, 2 dB max
- Axial Ratio: ≤ 3 dB
- Phase center error: +/- 2mm
- Voltage: 3.3 to 12 V
- Current: 50 mA max
- Flatness in Band: +/-2dB
- Differential delay: +/- 2nS
Choke Ring full ban Antenna features:
- Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
- Rugged IP67 rating with TNC-K mount for surveying pole
- Dome form factor
- GIS, RTK and other high accuracy GNSS applications
- Low power consumption
- Low phase center variation over azimuth and elevation and among different samples

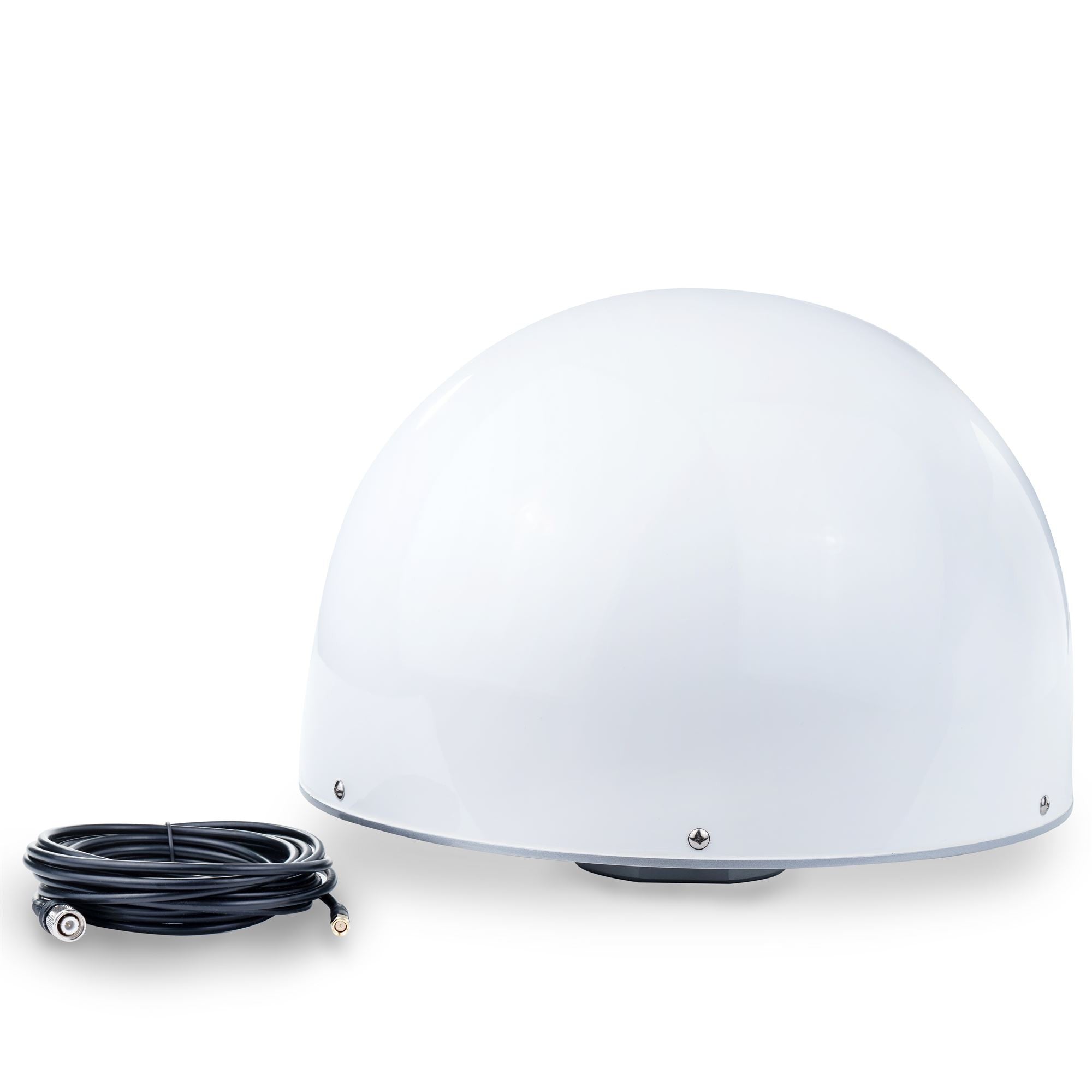

- TNC-K to SMA 5m cable included
- Dimension: Ø379.50*296.5 mm
- Weight: 9.6 kg
- Mounting: 5/8" threaded survey pin mount
