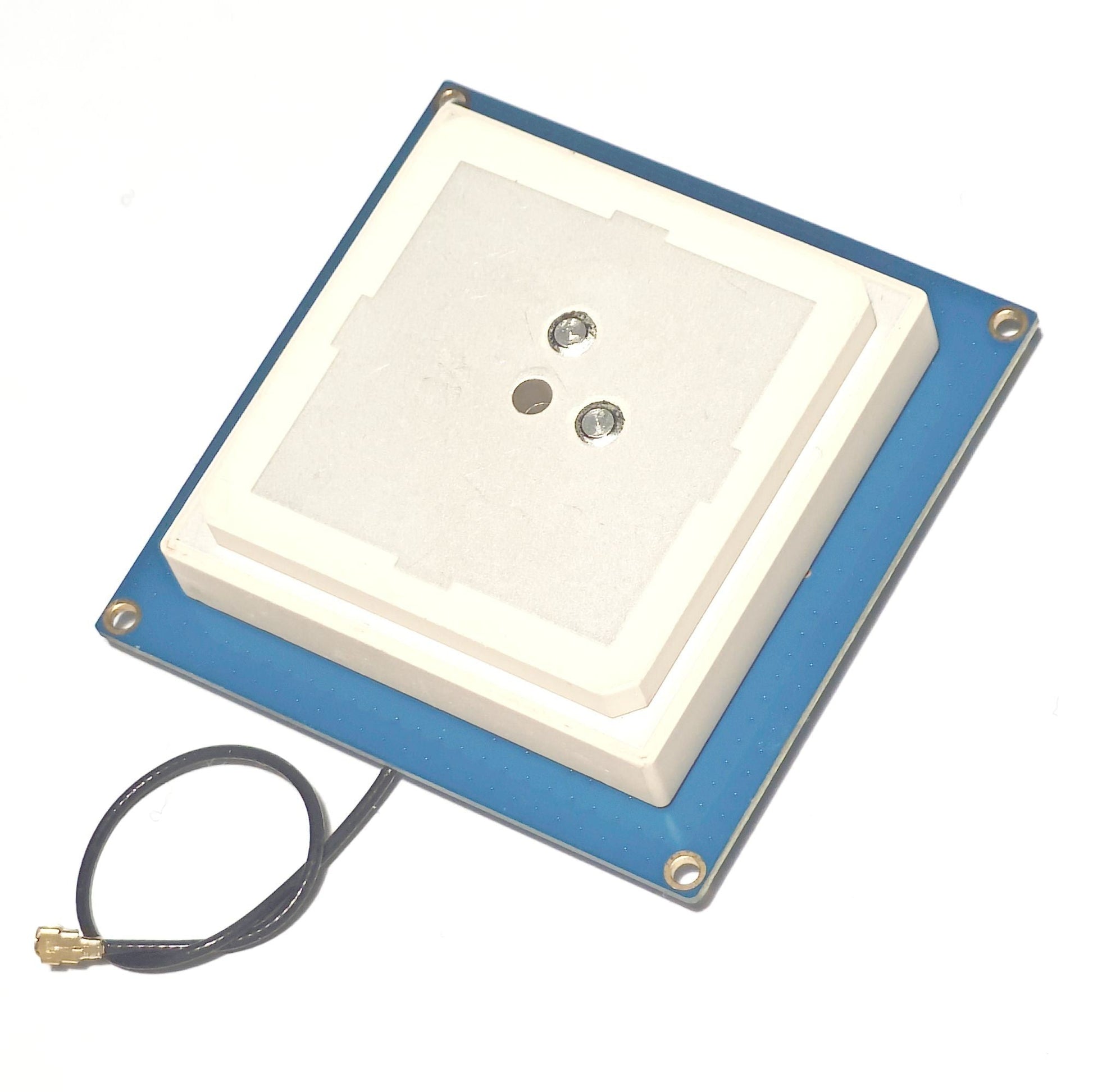

MultiPatch High Precision GNSS antenna description:
Multi-band GNSS active antenna has been carefully designed to work well on multiple GPS, GLONASS, Galileo and BeiDou bands, leading to higher location accuracy and stability of tracking in urban environments. The MultiPatch antenna design has an even gain across the hemisphere giving almost perfect axial ratio which makes it resilient to multipath rejection. The internal LNA provides excellent out of band rejection performance providing excellent positioning stability and reliability of GNSS signals. For RTK applications when used on the base and/or the rover, can achieve genuine centimetre level accuracy.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2
- GLONASS G1/G2/G3
- GALILEO E1/E5b
- BDS B1I/B2I/B1C/B2b
- SBAS L1
- QZSS L1/L2
MultiPatch High Precision GNSS antenna Features:
- Designed for integration
- High Gain (28dB)
- RoHS Compliant
MultiPatch High Precision GNSS Electrical data:
- Voltage range 3 – 12 V
- Typ current ≤45 mA
- Typ. LNA Gain 28 ± 3.0 dB
- LNA Noise Figure Max. 2 dB
- Axial Ratio ≤ 3 dB
- Max. Output VSWR 2.0
- Polarization RHCP
MultiPatch High Precision GNSS Environmental data:
- Operating temperature -40 to +85 ̊C
- Storage temperature -40 to +85 ̊C
- ESD circuit protection ±15 kV (IEC61000-4-2)
- Humidity 40% - 95%
- Vibration MIL-STD-810G, Method 514.7 Vibration
Mechanical data:
- Weight: 95 gr.
- Dimensions: 56 x 56 x 16.8 mm without cable (100 mm)
- Cable: (100 mm)
- Connector: U.FL (Ipex) cable connector
- Mounting: screw
