UM980 mPCIe socket RTK GNSS receiver
  • UM980 mPCIe socket RTK GNSS receiver
  • EAN-4751046552263 (UM980 mPCIe half size socket All-constellation High Precision GNSS Receiver with IPEX antenna connector.)

UM980 mPCIe socket RTK GNSS receiver

ELT0226

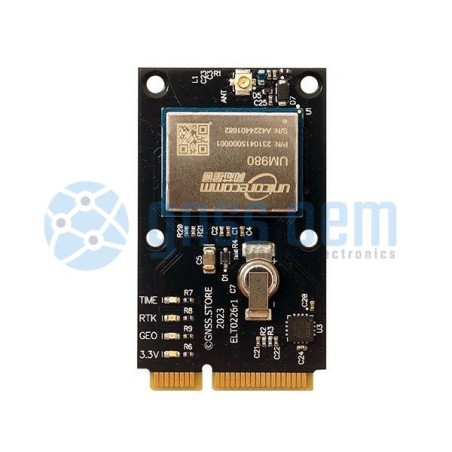

UM980 mPCIe half size socket All-constellation High Precision GNSS Receiver with IPEX antenna connector.

VOLUME SALES PRICING

This product comes with 1 years worldwide warranty

Volume discounts

Quantity Unit discount You Save
10 5% Up to 104.50 €
25 10% Up to 522.50 €
100 15% Up to 3,135.00 €
209.00 €
Tax excluded
Quantity

100% secure payments
Total Rating Total Rating:

0 1 2 3 4
5,00/5 - 1 review

View ratings
0 1 2 3 4 1
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
  Security policy

Security policy

  Delivery policy

Delivery policy

  Return policy

Return policy

Description

UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver.

UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.

Board features:

  • Full size mini PCI express compatible
  • Antenna input with IPEX connectors
  • Only USB interface used
  • Time pulse LED, Power LED, RTK LED, Geofence LED
  • UPrecise Unicore Evaluation Software
  • Extensive visualization and evaluation features
  • Backup supercapacitor
  • Dimensions 30x51 mm
  • Weight: 10 gr.
  • Fully assembled and ready to use

UM980 module features:

  • Based on the new generation GNSS SoC - NebulasIV, which integrates RF, baseband, and high precision algorithm
  • 17.0 x 22.0 x 2.6 mm LGA package
  • Supports on-chip RTK positioning calculation on all systems and multiple frequencies
  • Supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A
  • All-system multi-frequency RTK engine and advanced RTK technology
  • Independent tracking of different frequencies and 60dB narrowband anti-jamming technology

Performance Specifications:

  • Channels: 1408 channels, based on NebulasIV

Frequency

  • GPS L1C/A/L1C/L2P(Y)/L2C/L5
  • BDS B1I/B2I/B3I/B1C/B2a/B2b
  • GLONASS G1/G2/G3
  • Galileo E1/E5a/E5b/E6
  • QZSS L1C/A/L1C/L2C/L5
  • NavIC L5
  • SBAS L1C/A

Single point positioning (RMS):

  • Horizontal: 1.5 m
  • Time Accuracy(RMS) - 20 ns
  • Vertical: 2.5 m
  • Velocity Accuracy (RMS) - 0.03 m/s

DGPS (RMS)>:

  • Horizontal: 0.4 m
  • Cold start < 12 s
  • Vertcal: 0.8 m
  • Initialization Time < 5 s (typical)

RTK (RMS):

  • Horizontal: 0.8 cm + 1 ppm
  • Initialization Reliability > 99.9%
  • Vertical: 1.5cm + 1 ppm
  • Data Update Rate 50 Hz* Positioning

Observation accuracy (RMS)

 BDS GPS GLONASS Galileo
B1I/L1 C/A/G1/E1 Code  10 cm 10 cm 10 cm 10 cm
B1I/L1C/A/G1/E1 Carrier Phase  1 mm 1 mm 1 mm 1 mm
B2I/L5/E5a/E5b Code  10 cm 10 cm 10 cm 10 cm
B2I/L5/E5a/E5b Carrier Phase  1 mm 1 mm 1 mm 1 mm
B3I/L2P(Y)/L2C/G2 Code  10 cm 10 cm 10 cm 10 cm
B3I/L2P(Y)/L2C/G2 Carrier Phase  1 mm 1 mm 1 mm 1 mm
  • Differential Data - RTCM V3.X
  • Data Format - NMEA-0183, Unicore

Physical Characteristics:

  • Packaging: 54 pin LGA
  • Dimension: 17.0 × 22.0 × 2.6 mm
  • Weight: 1.88 ± 0.03 g

Environmental Specifications:

  • Working temperature: -40 °C ~ +85 °C
  • Storage temperature: -55 °C ~ +95°C
  • Humidity: 95% No condensation
  • Vibration: MIL-STD-810F
  • Shock: MIL-STD-810F

Communication Interfaces:

  • 3 × UART (LVTTL)
  • 1 × I2C*
  • 1 × SPI* (slave)
  • 1 × CAN* (shared with UART3)

Note: Items marked with * are only supported by specific firmware.

Board can be used for a Base or Rover operation mode!

For electronics designers:

Product Details
ELT0226
4751046552263
ELT0226
32 Items
Accessories
Four-star High Precision MultiPatch GNSS antenna Quick view

Reference: ELT0193

Four-star High Precision MultiPatch GNSS antenna

0 1 2 3 4 0 Review(s)

U.FL (IPEX) GPS L1/L2/L5, Glonass G1/G2/G3, BDS B1I/B2I/B3I/B1C/B2a/B2b, Galileo E1/E5a/E5b/E6, SBAS L1/L5, QZSS L1/L2/L5/L6, IRNSS L5, L-band MultiPatch High Precision GNSS antenna VOLUME SALES PRICING This product comes with 1 years worldwide warranty

Price 99.99 €
More
In stock
Four-star High Precision... Quick view

Reference: ELT0194

Four-star High Precision MultiPatch GNSS antenna set with cable

0 1 2 3 4 1 Review(s)

Four-star GPS L1/L2/L5, Glonass G1/G2/G3, BDS B1I/B2I/B3I/B1C/B2a/B2b, Galileo E1/E5a/E5b/E6, SBAS L1/L5, QZSS L1/L2/L5/L6, IRNSS L5, L-band MultiPatch High Precision GNSS antenna set with 5m TNC to SMA cable VOLUME SALES PRICING This product comes with 1 years worldwide warranty

Price 129.99 €
More
In stock
16 other products in the same category:
UM980 M.2 socket RTK GNSS receiver Quick view

Reference: ELT0225

Brand: ELTEHS

UM980 M.2 socket RTK GNSS receiver

0 1 2 3 4 2 Review(s)

UM980 M.2 socket All-constellation High Precision GNSS Receiver with IPEX antenna connector. VOLUME SALES PRICING This product comes with 1 years worldwide warranty

Price 209.00 €
More
In stock
UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver. Quick view

Reference: ELT0224

Brand: ELTEHS

UM980 Mic RTK GNSS receiver

0 1 2 3 4 0 Review(s)

UM980 Mic All-constellation High Precision GNSS Receiver with USB, I2C, UART, SPI with SMA or IPEX antenna connectors. Base or Rover operation. VOLUME SALES PRICING This product comes with 1 years worldwide warranty

Price 199.99 €
More
In stock
- 100.00 € New Reduced price UM980 GNSS RTK CORS Fanless Station Quick view

Reference: ELT0231

Brand: ELTEHS

UM980 GNSS RTK CORS Fanless Station

0 1 2 3 4 1 Review(s)

UM980 GNSS RTK CORS Station based on Raspberry PI4 with optional PoE support. The ELT_RtkBase software support NTRIP server, NTRIP caster, TCP server and TCP client connections and data logging, RTCM3 and RINEX data formats. Direct support for Onocoy and RTK Direct services, local database for hundreds of rovers. Four different methods for base...

Price 369.00 € Regular price 469.00 €
More
In stock
UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver. Quick view

Reference: ELT0220

Brand: ELTEHS

UM980 RTK InCase PIN GNSS receiver board

0 1 2 3 4 1 Review(s)

UM980 All-constellation High Precision GNSS Receiver InCase PIN EVAL module USB, I2C, UART, SPI with SMA or I-PEX antenna connectors. Base or Rover operation. VOLUME SALES PRICING This product comes with 1 years worldwide warranty

Price 199.99 €
More
In stock
Out-of-Stock New UM980 RTK all-bands GNSS rover Quick view

Reference: ELT0234

Brand: ELTEHS

UM980 RTK all-bands GNSS rover

0 1 2 3 4 0 Review(s)

UM980 RTK all-band GNSS rover with centimeter accuracy. Rover kit for surveying, mapping and navigation with Helix Antenna on SMA connector, USB-C connector and 1/4" thread mount in IP67 waterproof case. VOLUME SALES PRICING This product comes with 1 years worldwide warranty

Price 459.00 €
More
Out-of-Stock

Related articles

Reviews Reviews (1)

Write a Review
Based on 1 review - 0 1 2 3 4 5,00/5
Filter:
0 1 2 3 4 (1)
0 1 2 3 0 (0)
0 1 2 0 1 (0)
0 1 0 1 2 (0)
0 0 1 2 3 (0)
Sort by:

0 1 2 3 4
(5/5)
By Nobly Leon on 08/11/2023 UM980 mPCIe socket RTK GNSS receiver 0 of 0 people found the following review helpful
Total Rating: 0 1 2 3 4

Hi there
I'm interested in buying this product, I have a raspberry pi with mPCIe HAT. What drivers will I need to get it to run?
Also, I will need to use it with a windows pc so I can run UPrecise occasionally. What windows driver can I use for this device? If I don't have a mpcie slot in my windows pc, is there an adaptor that I can use to plug it into usb port or M2 port etc?
(I know you also sell usb dongle um980 but I want the mpcie because most of the time it will be inside the raspberry pi case)
Thank you


Shop owner reply (08/11/2023):
Hi Leon,

This board works as serial port over USB. So, standard serial port driver will be enough.
In windows you also does not need any special. Standard USB serial port driver works well with all this boards.
