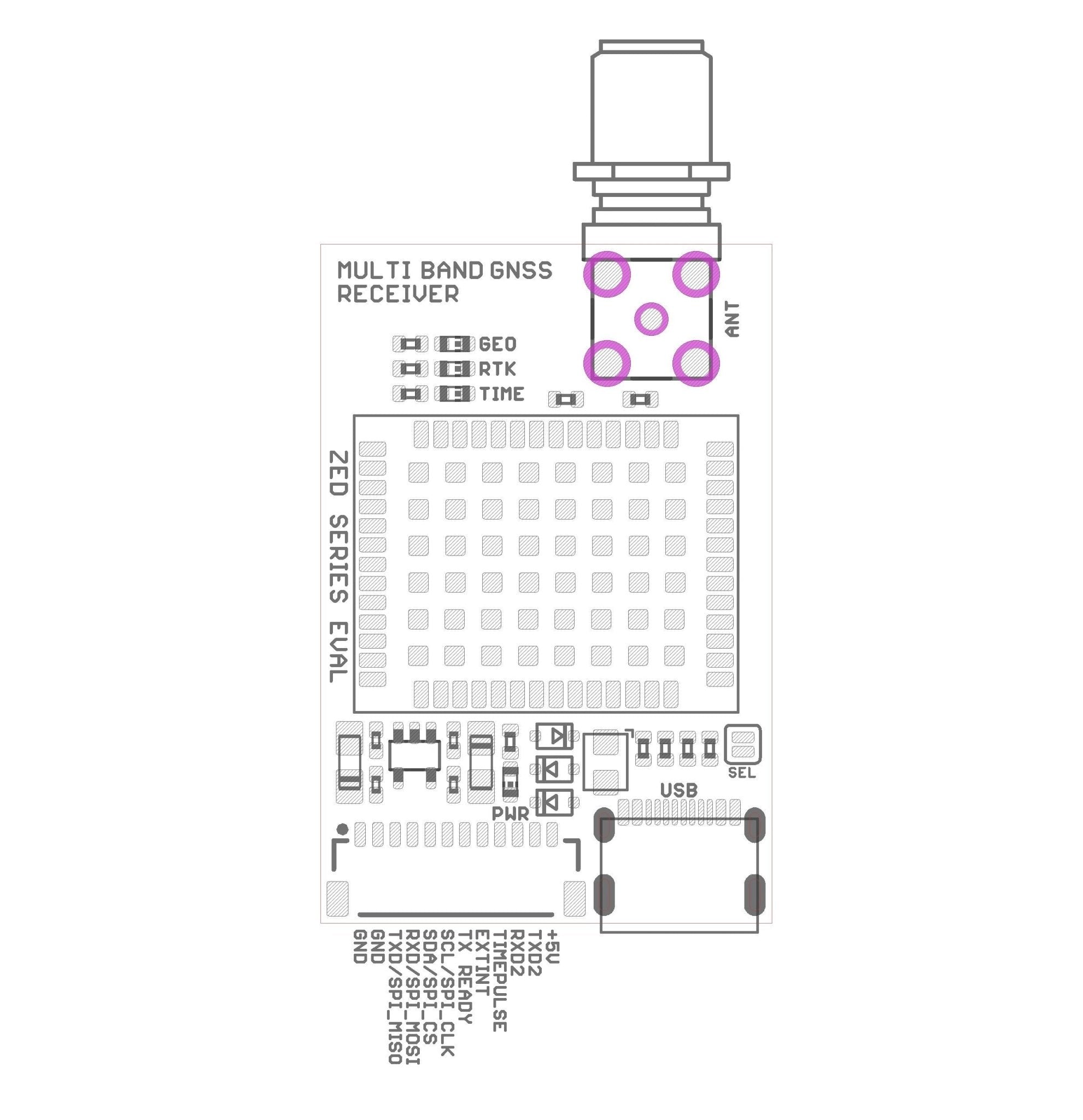

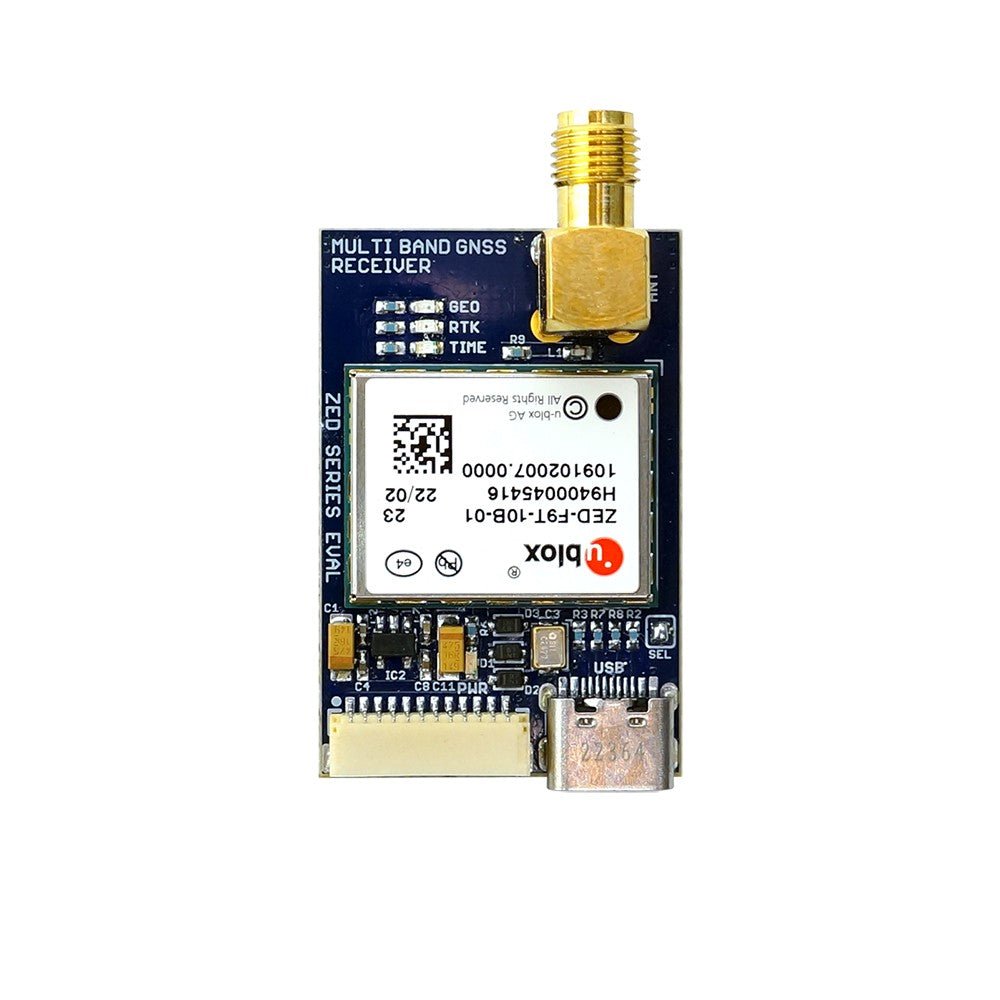

ZED-F9T-10B L1/L5/E5a high accuracy USB C timing module with SMA
ZED-F9T-10B L1/L5/E5a high accuracy USB C timing module with SMA
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
ZED-F9T-10B L1/L5/E5a high accuracy USB C timing EVAL module I2C, UART, SPI with SMA antenna connectors.
PIN to PIN compatible with ELT0141
The ZED-F9T-10B L1/L5/E5a timing module is an advanced solution for infrastructure applications, offering unparalleled nanosecond-level timing accuracy. Its design specifically caters to the rigorous timing synchronization requirements of 5G networks on a global scale. Operators using the ZED-F9T-10B L1/L5/E5a can maximize their network's performance and optimize their investment in 5G communications by significantly reducing time errors in cellular network synchronization.
Remarkably, the timing module achieves timing accuracy of less than 5 ns even under clear skies, eliminating the need for an external GNSS correction service. Moreover, it incorporates innovative differential timing modes that allow for the exchange of correction data with neighboring GNSS timing receivers through a communication network, further enhancing local accuracy. The module's access to all four satellite constellations enhances its ability to deliver reliable performance.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Ensuring the highest level of timing integrity, the ZED-F9T-10B L1/L5/E5a incorporates advanced security features such as secure boot, secure interfaces, and T-RAIM. These features provide reliable protection against potential threats.
To enhance signal selectivity and out-of-band attenuation, the module employs a single RF input for all GNSS bands and dual SAW filters. This ensures exceptional performance and reliability in signal reception.
Overall, the ZED-F9T-10B L1/L5/E5a timing module is a cutting-edge solution developed to meet the demanding needs of infrastructure applications, particularly in the realm of 5G networks. Its outstanding precision, multi-band capability, and advanced security features make it a reliable choice for operators seeking optimal performance and efficiency.
- On-board Ultra low noise 3.3V voltage regulator with noise 2nV/Hz
- USB type C, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface
- SMA antenna connectors
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED
- Backup supercapacitor
- Dimensions: 38x22 mm
- Weight: 9 gr.
- Fully assembled and ready to use
- 12 JST SH connector
Accessories
L1/L5 ANN-MB1 multi-band high precision GNSS antenna
SKU: ELT0140Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| ZED-F9T-10B L1/L5/E5a high accuracy USB C timing EVAL module I2C, UART, SPI with SMA antenna connectors.PIN to PIN compatible with ELT0141 The ZED-F9T-10B L1/L5/E5a timing module is an advanced solution for infrastructure applications, offering unparalleled nanosecond-level timing accuracy. Its design specifically caters to the rigorous timing synchronization requirements of 5G networks on a global scale. Operators using the ZED-F9T-10B L1/L5/E5a can maximize their network's performance and optimize their investment in 5G communications by significantly reducing time errors in cellular network synchronization. Remarkably, the timing module achieves timing accuracy of less than 5 ns even under clear skies, eliminating the need for an external GNSS correction service. Moreover, it incorporates innovative differential timing modes that allow for the exchange of correction data with neighboring GNSS timing receivers through a communication network, further enhancing local accuracy. The module's access to all four satellite constellations enhances its ability to deliver reliable performance. Ensuring the highest level of timing integrity, the ZED-F9T-10B L1/L5/E5a incorporates advanced security features such as secure boot, secure interfaces, and T-RAIM. These features provide reliable protection against potential threats. To enhance signal selectivity and out-of-band attenuation, the module employs a single RF input for all GNSS bands and dual SAW filters. This ensures exceptional performance and reliability in signal reception. Overall, the ZED-F9T-10B L1/L5/E5a timing module is a cutting-edge solution developed to meet the demanding needs of infrastructure applications, particularly in the realm of 5G networks. Its outstanding precision, multi-band capability, and advanced security features make it a reliable choice for operators seeking optimal performance and efficiency.
| Regular price
€214,99
Sale price
€214,99
Regular price
| ELTEHS |
Choose your option
ZED-F9T-10B L1/L5/E5a high accuracy USB C timing module with SMA
ZED-F9T-10B L1/L5/E5a high accuracy USB C timing module with SMA
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>10 pcs)
ZED-F9T-10B L1/L5/E5a high accuracy USB C timing EVAL module I2C, UART, SPI with SMA antenna connectors.
PIN to PIN compatible with ELT0141
The ZED-F9T-10B L1/L5/E5a timing module is an advanced solution for infrastructure applications, offering unparalleled nanosecond-level timing accuracy. Its design specifically caters to the rigorous timing synchronization requirements of 5G networks on a global scale. Operators using the ZED-F9T-10B L1/L5/E5a can maximize their network's performance and optimize their investment in 5G communications by significantly reducing time errors in cellular network synchronization.
Remarkably, the timing module achieves timing accuracy of less than 5 ns even under clear skies, eliminating the need for an external GNSS correction service. Moreover, it incorporates innovative differential timing modes that allow for the exchange of correction data with neighboring GNSS timing receivers through a communication network, further enhancing local accuracy. The module's access to all four satellite constellations enhances its ability to deliver reliable performance.
Ensuring the highest level of timing integrity, the ZED-F9T-10B L1/L5/E5a incorporates advanced security features such as secure boot, secure interfaces, and T-RAIM. These features provide reliable protection against potential threats.
To enhance signal selectivity and out-of-band attenuation, the module employs a single RF input for all GNSS bands and dual SAW filters. This ensures exceptional performance and reliability in signal reception.
Overall, the ZED-F9T-10B L1/L5/E5a timing module is a cutting-edge solution developed to meet the demanding needs of infrastructure applications, particularly in the realm of 5G networks. Its outstanding precision, multi-band capability, and advanced security features make it a reliable choice for operators seeking optimal performance and efficiency.
- On-board Ultra low noise 3.3V voltage regulator with noise 2nV/Hz
- USB type C, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface
- SMA antenna connectors
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED
- Backup supercapacitor
- Dimensions: 38x22 mm
- Weight: 9 gr.
- Fully assembled and ready to use
- 12 JST SH connector
