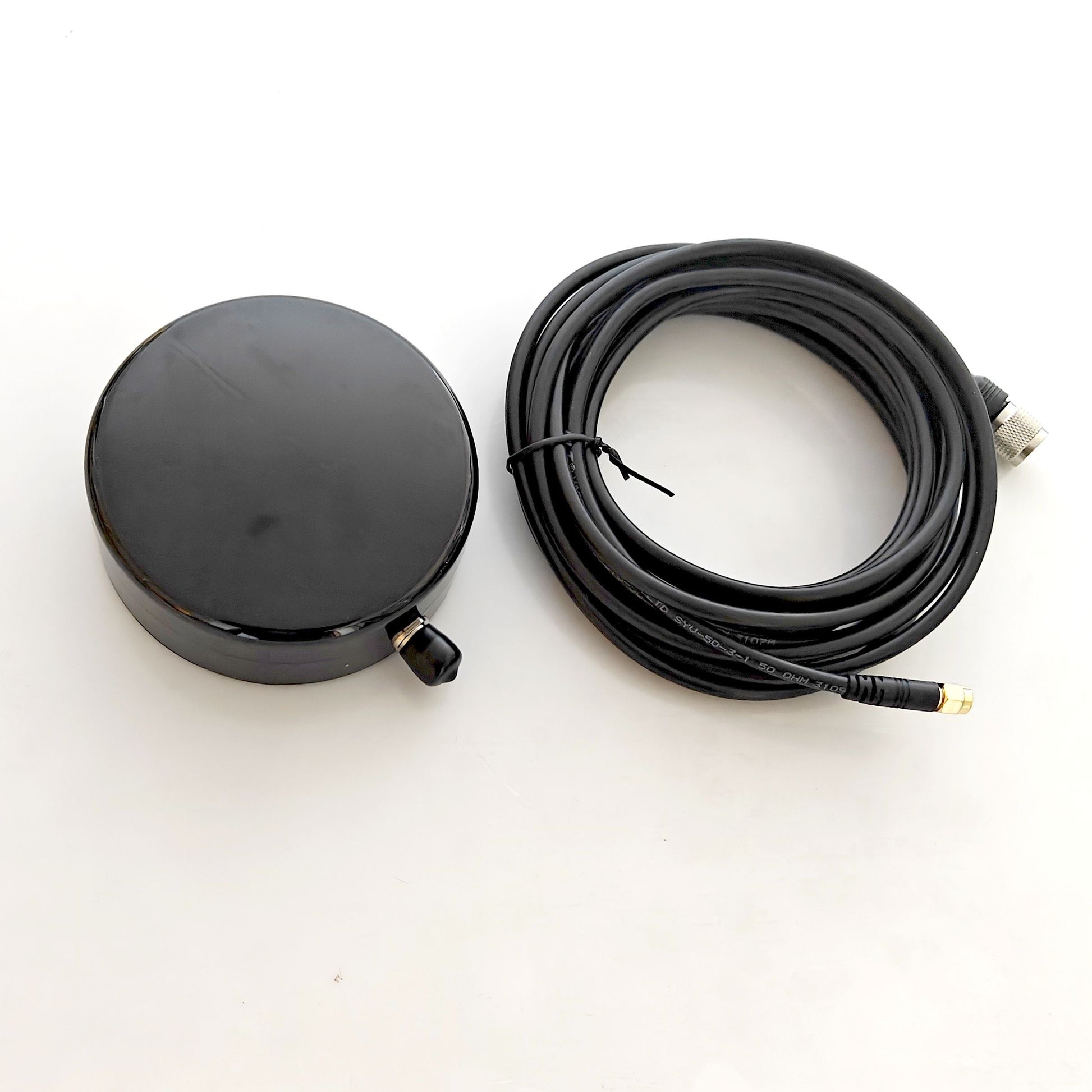

AllBand Four-star High Precision MultiPatch GNSS antenna set with cable
AllBand Four-star High Precision MultiPatch GNSS antenna set with cable
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded

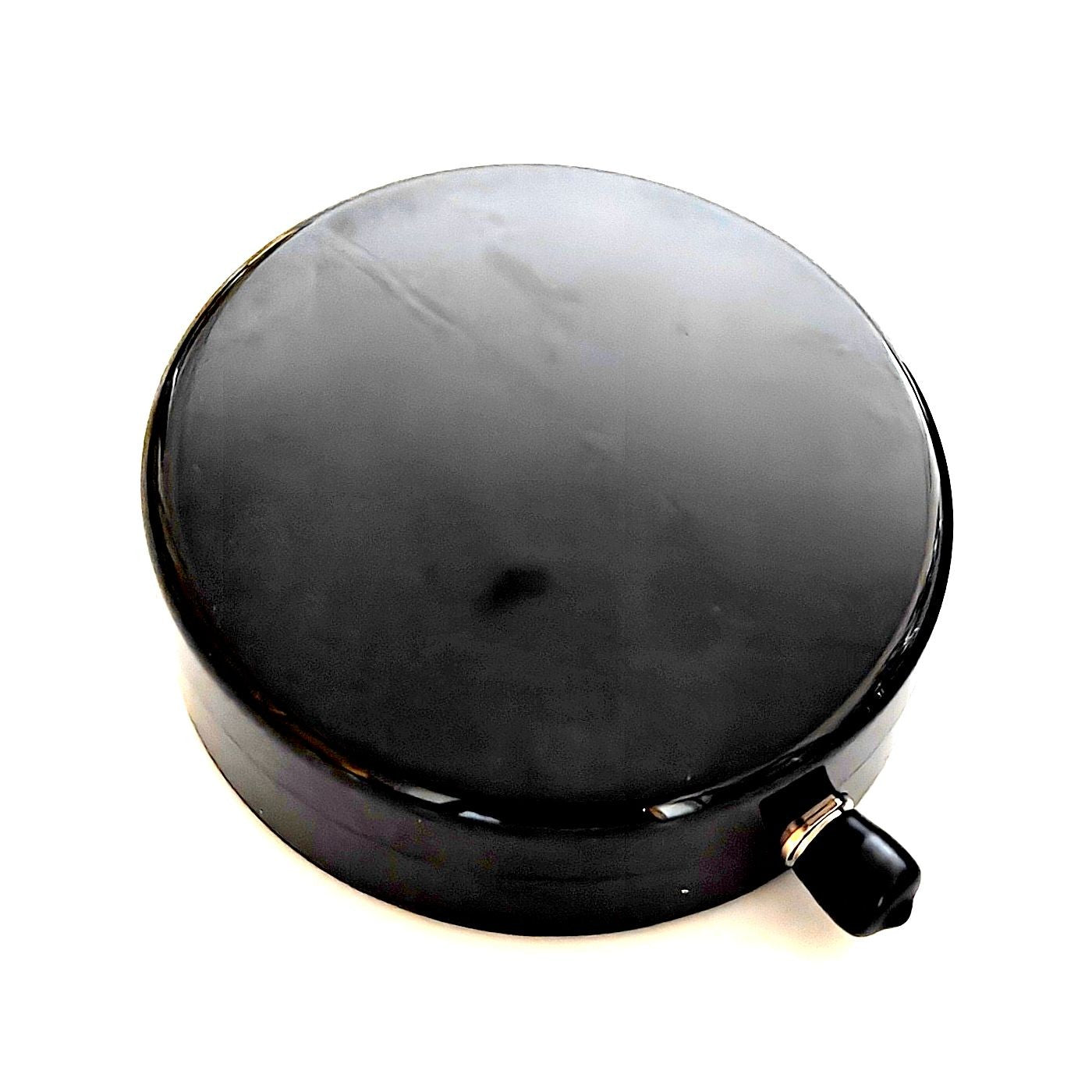

Four-star MultiPatch High Precision GNSS antenna description:
The Four-Star MultiPatch GNSS active antenna has been meticulously engineered to deliver superior performance across GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, IRNSS, and L bands. This design ensures optimal accuracy and robust tracking in urban environments. With its uniform gain and near-perfect axial ratio, the antenna effectively mitigates multipath interference. The internal LNA offers outstanding out-of-band rejection, ensuring stability and reliability of GNSS signals. When employed for RTK applications on the base and/or the rover, it can achieve genuine centimeter-level accuracy. This antenna is designed for use with all-band GNSS modules.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
MultiPatch High Precision GNSS antenna Features:
- Designed for outdoor applications
- High Gain (38dB)
- RoHS Compliant
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1/E5a/E5b/E6
- BDS B1I/B2I/B3I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5/L6
- IRNSS I5

MultiPatch High Precision GNSS Electrical data
- Voltage range 3.3 – 12 V
- Typ current ≤45 mA
- Gain 5 dBi
- Typ. LNA Gain 38 ± 2 dB
- LNA Noise Figure ≤ 2 dB
- Axial Ratio ≤ 3 dB
- Max. Output VSWR 2.0
- Polarization RHCP
- Phase center error ±2 mm
- Passband fluctuation ±1.5 dB
MultiPatch High Precision GNSS Environmental data
- Operating temperature -40 to +85 ̊C
- Storage temperature -40 to +85 ̊C
- Ingress Protection Rating: IP64
- ESD circuit protection ±15 kV (IEC61000-4-2)
- Humidity 40% - 95%
- Vibration MIL-STD-810G, Method 514.7 Vibration
Mechanical data
- Weight: 290 gr. without cable
- Dimensions: dia 100 mm, height 36.5 mm
- Cable: 5 m
- Connectors: TNC-K/SMA
- Housing color: black

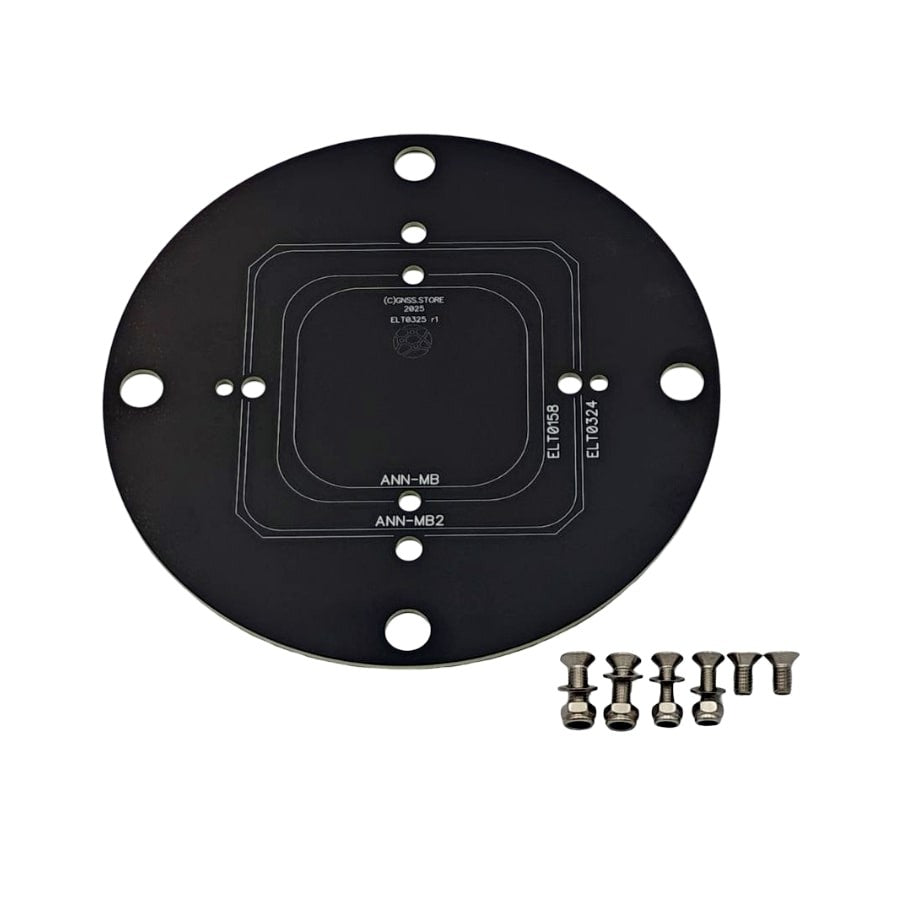

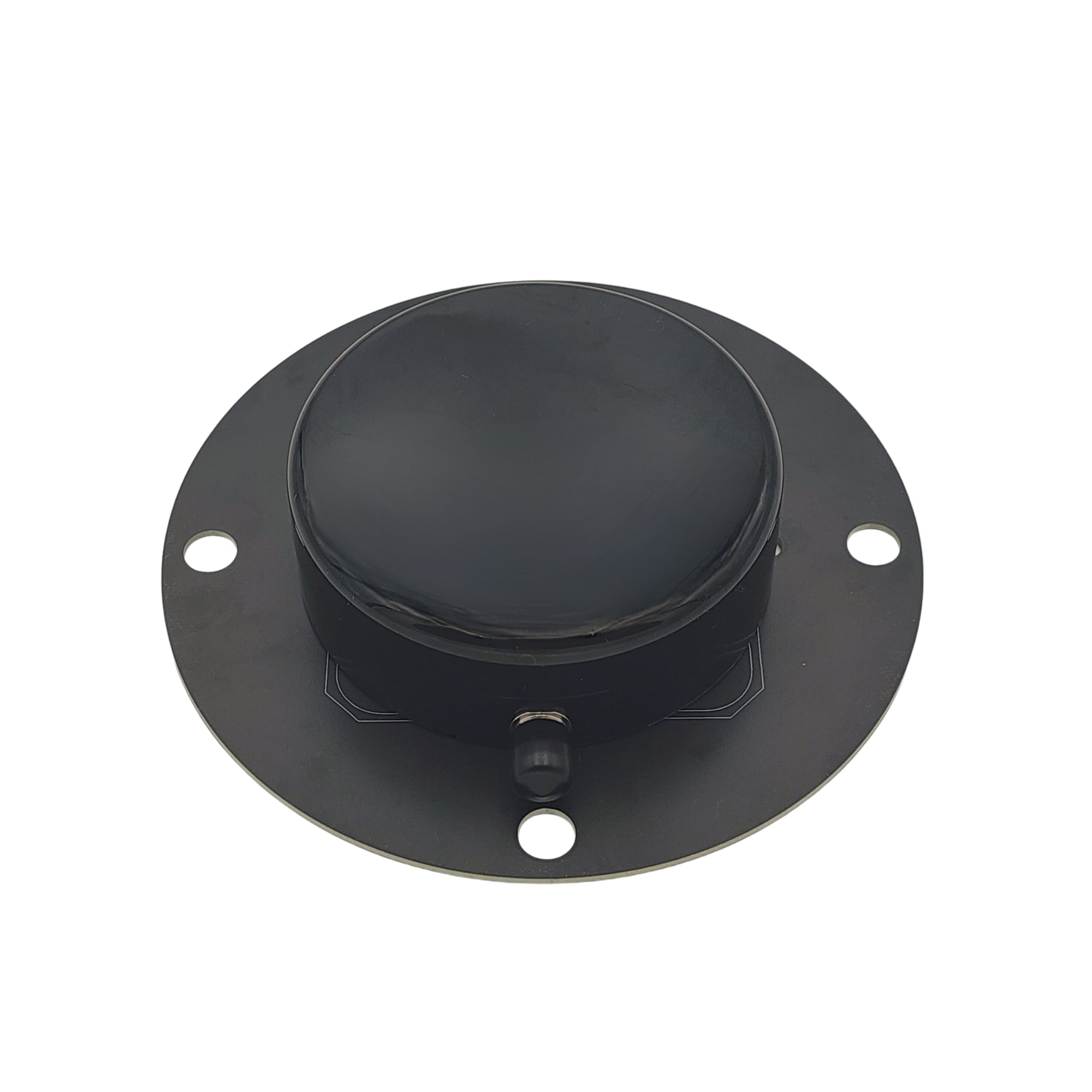

- Mounting holes M5: 60x60 mm
- Waterproof 3M double sided tape mounting
