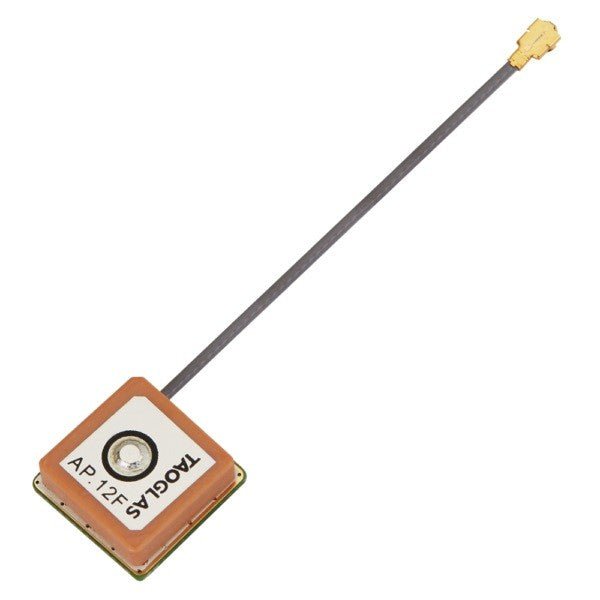

IPEX (U.FL) 12mm Two Stage 28dB GPS/GALILEO Active Patch Antenna Module with front-end Saw Filter
The AP.12F has been designed specifically for embedded (inside device) integrationwith GPS/GALILEO receiver modules where there is a GSM transmitter nearby and risk of interference and saturation. The AP.12F combines a 12*12*3.5mm advanced low profile ceramic patch antenna with a two stage LNA and a front-end SAW filter with ultra thin coaxial cable. Only 5.6mm in height, this Taoglas active antenna module utilises XtremeGain™ technology for the highest industry sensitivity. The AP.12F consists of 2 functional blocks – the LNA and also the patch antenna. The AP.12F has a SAW filter on the front of it. The main use of the AP.12F would be for small devices where the GSM transmitter is close to the GPS/GALILEO antenna, it helps avoid burn-out of the LNA or the module due to interference from the GSM transmitter at out band frequencies
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1
- GLONASS G1
- GALILEO E1
- BDS B1I/B1C
- SBAS L1
- QZSS L1
RF specifications:
- GPS L1
- Galileo E1
- LNA Gain 28dB
- Max. Output VSWR 2.0
- Polarization RHCP
- Axial Ratio 4.0dB max. @Zenith
Features:
- Wide Input Voltage 1.8V to 5.5V
- Low Power Consumption
- RoHS & Reach compliant
Mechanical Data:
- Dimensions: 13.4*13.4*6mm (Ground Plane)
- Weight: 22 gr.
- Connector: IPEX (U.FL)
- Cable length: 45 mm Ø1.13 mm
- Mounting: double sided 3M tape
