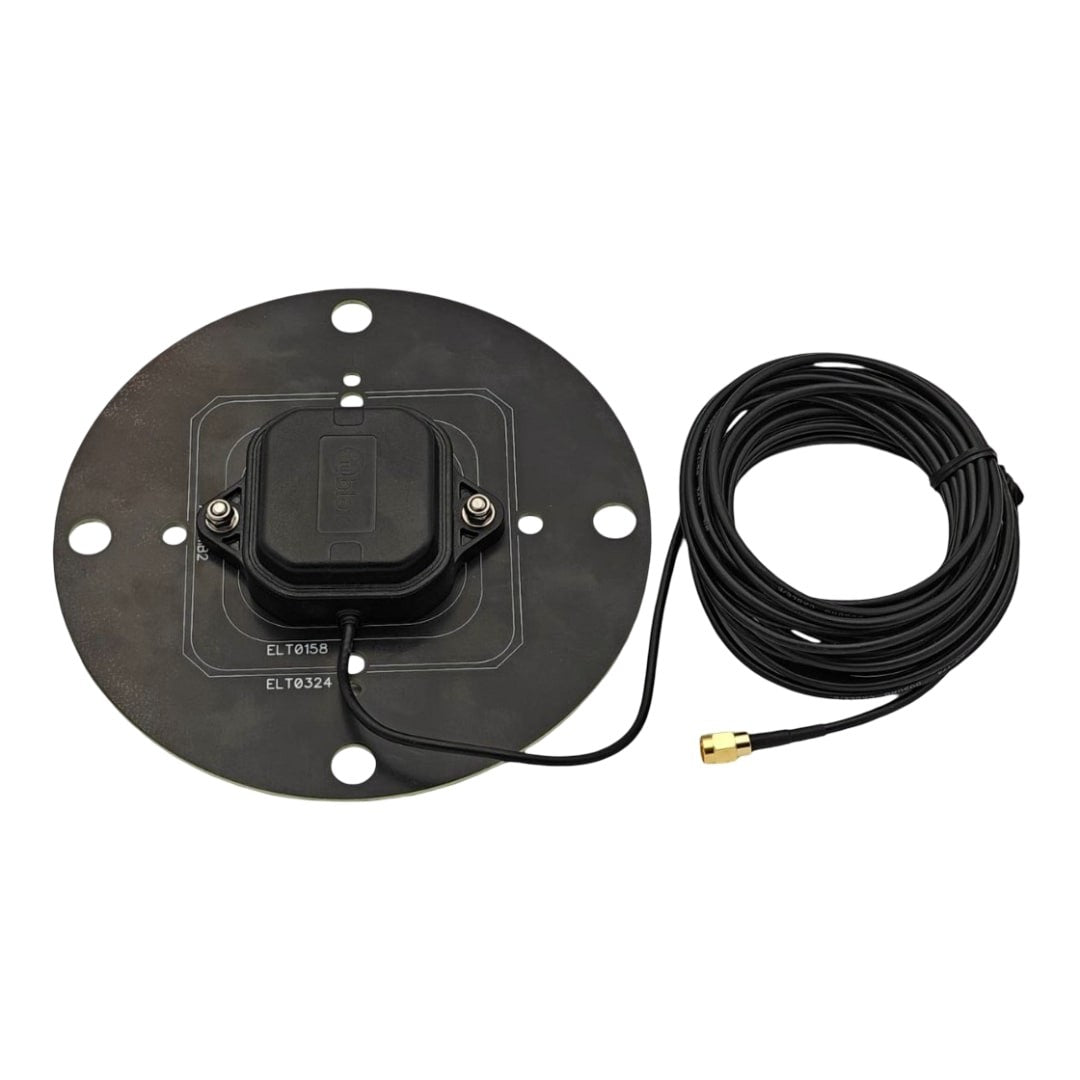

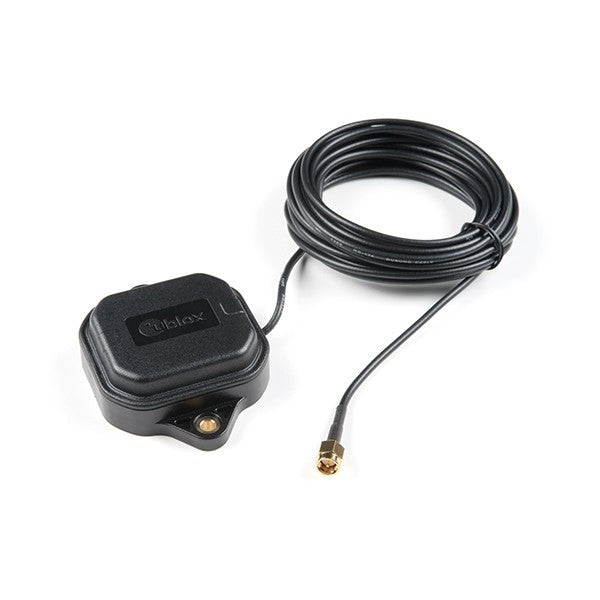

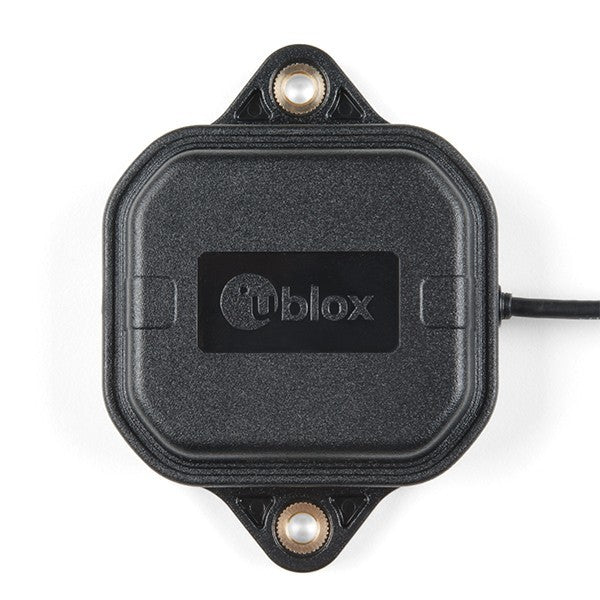

L1/L5 ANN-MB1 multi-band high precision GNSS antenna
The u-blox ANN-MB1 AllBand (GPS L1//L5, GLONASS G1, GALILEO E1/E5a, BDS B1I/B1C/B2a, SBAS L1/L5, QZSS L1/L5) active GNSS antenna is designed to reduce time-to -market for the new generation of high precision GNSS applications, which require highly accurate location abilities. The compact design, excellent price-to-performance ratio, and versatile mounting choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB1 antenna is a perfect match to the u-blox F9 platform (for example, ZED-F9T-10B), supporting L1 and L5 bands, thus providing customers with the valuable antenna solution they need to minimize evaluation and design-in efforts.
Available in stock (>10 pcs)
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1//L5
- GLONASS G1
- GALILEO E1/E5a
- BDS B1I/B1C/B2a
- SBAS L1/L5
- QZSS L1/L5
Highlights:
- L1-L5 multi-band active GNSS antenna for mass-market applications
- Supports GPS, GLONASS, Galileo, and BeiDou for maximum position availability
- Enables fast time-to-market
- Versatile mounting options to meet diverse installation needs
Amplifier characteristics:
- LNA Gain: 28 ± 3 dB
- Noise figure Max: 3.2 dB
- Axial Ratio: 3.4 dB max. @Zenith
- Max. Output VSWR: 2.0
- Polarization: RHCP
- Voltage range: 3 - 5 V
- Typ. current: 15 mA
Mechanical data:
- Weight 164 g (typ. including cable)
- Size 60.0 x 82.0 x 22.5 mm
- Cable 5 m RG174 standard
- Connector SMA
- Ingress Protection Rating: IP67

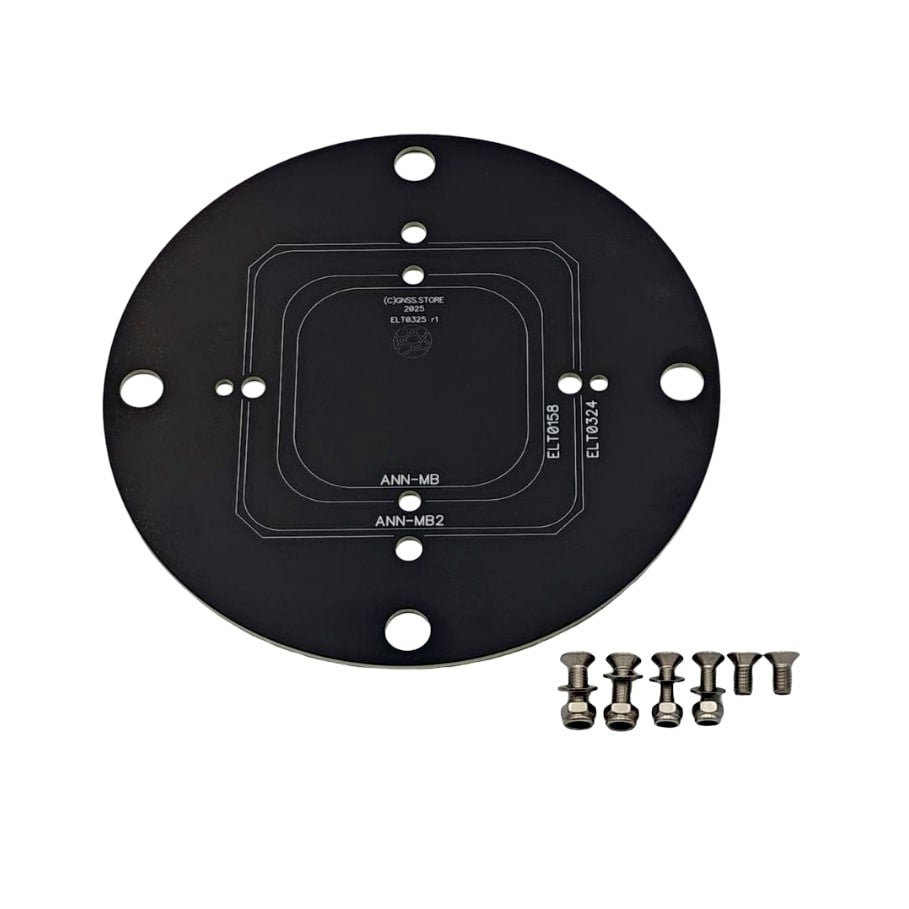

- Mounting Magnetic base, fixed installation option
- Housing color Black
Certifications and approvals:
CE approval Based on Radio Equipment Directive (RED) 2014/53/EU and the Restriction of the use of certain Hazardous Substances Directive (RoHS) 2011/65/EU and 2015/863/EU
Environmental data:
- Operating temperature –40 °C to +85 °C
- Storage temperature –40° C to +85 °C
- Waterproof IP 67
Product variants:
ANN-MB1-00 Multi-band (L1-L5) active GNSS antenna, high precision, with 5-meter cable and SMA connector
